Light with intensity adjustment function
The intensity of the LED handpiece can be adjusted in three levels according to the practitioner's preference or in response to the environment of the clinic.
Selectable water flow level
In order to effectively cool a tip, the water flow can be selected from 5 levels to match the type of tip and the situation of the oral cavity, with a maximum flow of 75 ml per minute. Effective water flow reduces heat buildup in the tip of the tip, preventing thermal damage to osteocytes.
GEAR Key
Use to set gear ratio of the attached handpiece before use.
(20:1,1:1,1:2,1:3,1:5)
MEMORY Key
You can save settings to program memory according to the details of the procedure or the type of tip used. The set program can easily be activated with the program button, eliminating the need for annoying operations.
Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.
SPEED Key
Press [+] Key to increase, and [-] Key to decrease speed.
TORQUE Key
Press [+] Key to increase and [-] Key to decrease torque range.
PROGRAM Key
You can select saved program numbers from 1 to 8.
Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.
USB memory & Data
Treatment data can be accessed and downloaded using a USB memory stick.
You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
*memory stick isn't included.
Large LCD panel with backlight
The highly-visible backlit LCD panel and intuitive operations through icon buttons assists in carrying out safe, and accurate procedures.
High-performance irrigation pump
This product is designed for easy, accurate, and speedy attachment of irrigation tubes. The highly-reliable construction ensures that you don't have to worry about malfunctions during a procedures. The noise level of the pump during operation is also reduced for a quieter environment while carrying out procedures.
FWD / REV Key
Use to select the direction of rotation. Press this Key once to change the rotational direction.

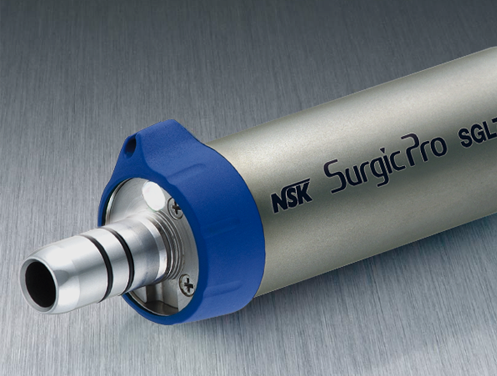

Este nuevo micromotor quirúrgico es 16,2 mm más corto y pesa 42 g menos que el micromotor quirúrgico óptico convencional.
La iluminación LED ayuda a los dentistas a concentrarse con más facilidad en el área de tratamiento y contribuye a una cirugía de mayor precisión
Más nitidez :
La luz LED genera una luz natural que proporciona una visión más nítida que la luz halógena.
Más duradera :
Las fuentes de luz LED son más duraderas que las bombillas halógenas.
Use NSK Surgic Pro AHC para calibrar el micromotor y la pieza de mano con la resistencia de rotación para cada pieza de mano individual antes de la operación. La AHC garantiza una velocidad y un torque de extraordinaria precisión para una máxima seguridad durante su funcionamiento.
Se puede acceder y descargar la información sobre el tratamiento utilizando un USB pendrive.
No es necesario instalar ningún software específico, ya que la información se puede visualizar con software de uso general como bitmap y ficheros csv.
*USB pendrive no incluido en el envío.

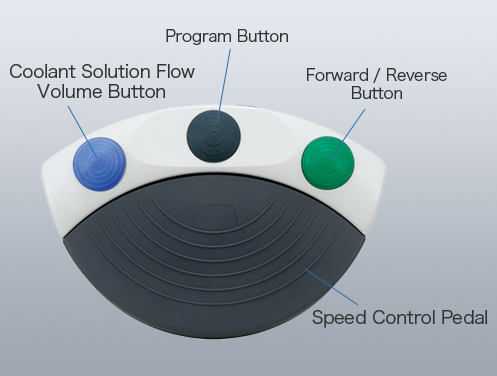

El pedal de control es fácil de usar y permite el manejo de todas las funciones dentro de los parámetros preestablecidos sin necesidad de tocar el panel de control, para evitar activar accidentalmente el micromotor fuera de los límites preestablecidos. El Surgic Pro/Surgic Pro+ está certificado conforme a la norma IPX8.
Ud. puede operar ambos sistemas, el motor para implantes Surgic Pro y el sistema de cirugía ósea ultrasónico VarioSurg3, con un sólo pedal de control mediante la vinculación de las dos unidades con el Cable de Enlace. Instale los dos sistemas juntos en el Soporte de Enlace, y obtendrá un compacto espacio mínimo.
